Title. I printed a case for a friend, and I ended up wanting to have a similar case, but it didn’t exist for my phone, so I ended up recreating something similar in OpenSCAD, then decided I’d probably be better off making it customizable so that it could fit, theoretically, any (current) candy-bar style phone.

TL;DR: The Good Stuff

Here are some screenshots!

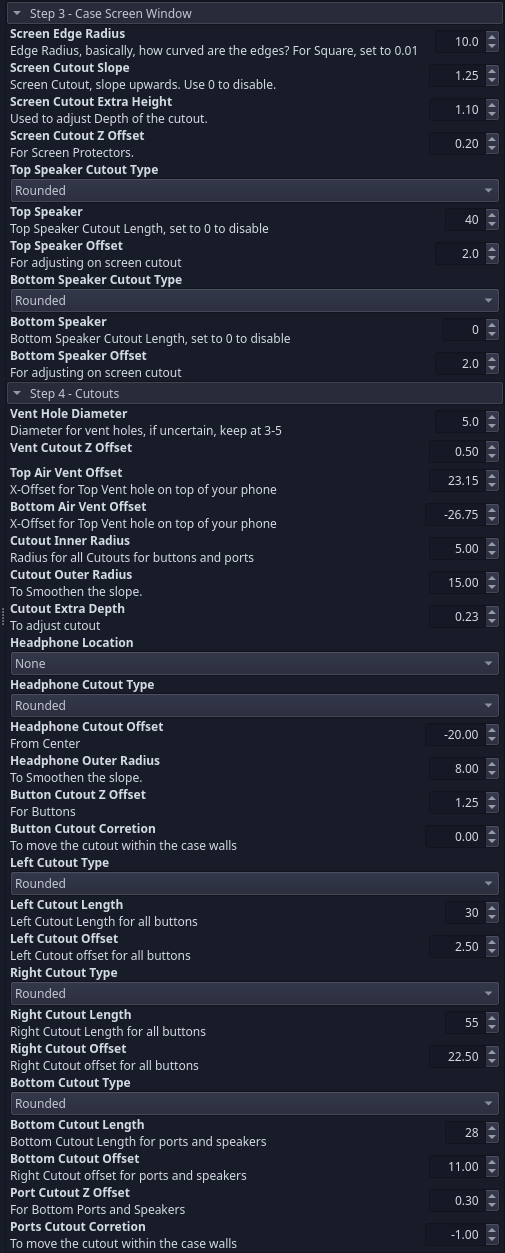

Phone case screenshot First set of configuration Second set of configurations

It took me about 4-5 nights to get it mostly as decent as I could make it, I still don’t consider myself an OpenSCAD expert by no means, but when I tried it on my phone, I was pretty satisfied!

Unfortunately, for my phone, I had to make a couple of test prints, and the print shown on video, was putting a tad too much pressure on the corners of the screen, so I ended up having to make a new print. (7 total tests during development)

Here's how the case looks with the screws on

Phone in hand Volume buttons, ports

Either way, I am more than open to feedback, and you are free to contribute if you’d like!

  • the16bitgamer@programming.devEnglish
    9·
    10 days ago

    Why didn’t you fillet the edges? Would make it a little easier to hold in your hands since you won’t have a edge digging into it.

    • Solrac@lemmy.worldOPEnglish
      6·
      10 days ago

      I’ll admit, I had thought of it, but didn’t know how to do it. Along with the sides cutout’s outter radius already taking from the top edges (though that’s a matter of getting the config right)

      • seang96@spgrn.comEnglish
        4·
        10 days ago

        There are OpenSCAD libraries and I remember one has support for fillet and chamfers.

        • Solrac@lemmy.worldOPEnglish
          5·
          10 days ago

          I had considered using libraries, but then I would have to expect the other person to also have set libraries. Alternatively, I could also just copy and paste the function, but I feel a little bit disingenuous about that.

  • Monument@piefed.worldEnglish
    8·
    10 days ago

    Oh yeah, well I created a universal phone case with masking tape and flex seal!
    -sent from my laptop

  • Sunkissd_XTC@fedinsfw.appEnglish
    5·
    10 days ago

    as a fan of thick and beefy cases, I LOVE IT! I would countersink the screws on the front, but just my opinion 🤷‍♀️

    • Solrac@lemmy.worldOPEnglish
      4·
      10 days ago

      Thank you!! I really prefer rugged cases too if it’s available. As for the screws, I completely agree, but sadly the screw store that was around, didn’t stuck up on much M# screws cause that particular the store didn’t sell them much. I’'ll check my local one soon. Otherwise, I might just add the slightly larger holes on top to make up for regular screws.
